Zigbee & Thread Dual-Protocol Support
Thread Mode
Integrate with multiple platforms through Matter, including Apple Home, Google Home, Amazon Alexa, Home Assistant, Samsung SmartThings, and more.
Zigbee Mode
Using the Zigbee protocol, you unlock more exclusive features in the Aqara Home app, while also enjoying Matter compatibility via a Matter Bridge like our Hub M100.
| Thread Protocol (Default) | Zigbee Protocol | |
|---|---|---|
| Requires | Thread-enabled Matter Controller | Aqara Zigbee hub |
| App + Local Control: Outlets On/Off |  |
|
| App Control: USB-C On/Off | *Availability varies by ecosystem. |
|
| Power Monitoring | * Availability varies by ecosystem. For individual outlet monitoring, Zigbee mode (Aqara Home) is required; otherwise, only combined monitoring data will be displayed. |
|
| Power-Off Memory | |
|
| Child Lock |  |
|
| Custom Press Mode Single-Press Mode Multi-function Mode |
|
*Multi-function mode slightly increases the button's reaction time. |
| Indicator Light Setting | |
|
| Maximum Power Setting | |
|

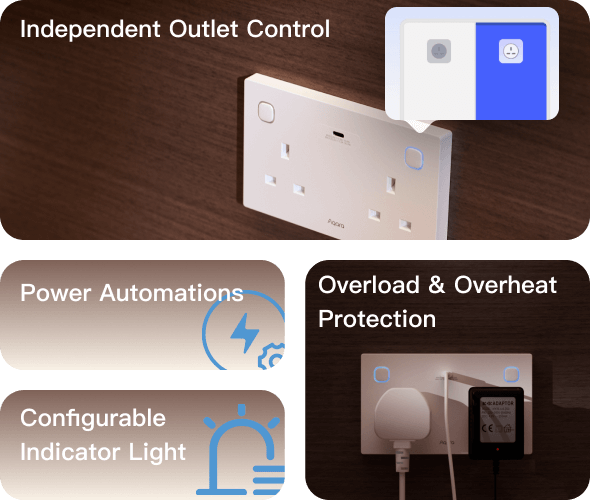

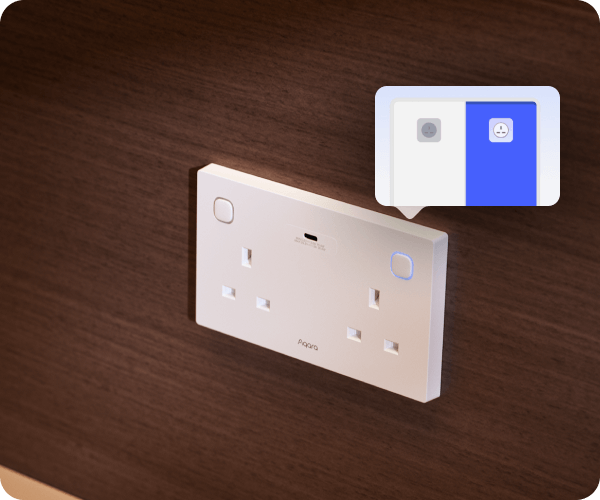

Independent Outlet Control
Outlets can be turned on/off separately on the app or on the outlet itself, with LED buttons illuminated above the outlet. This makes managing multiple devices and overall power management easy and convenient, even in tight spaces.

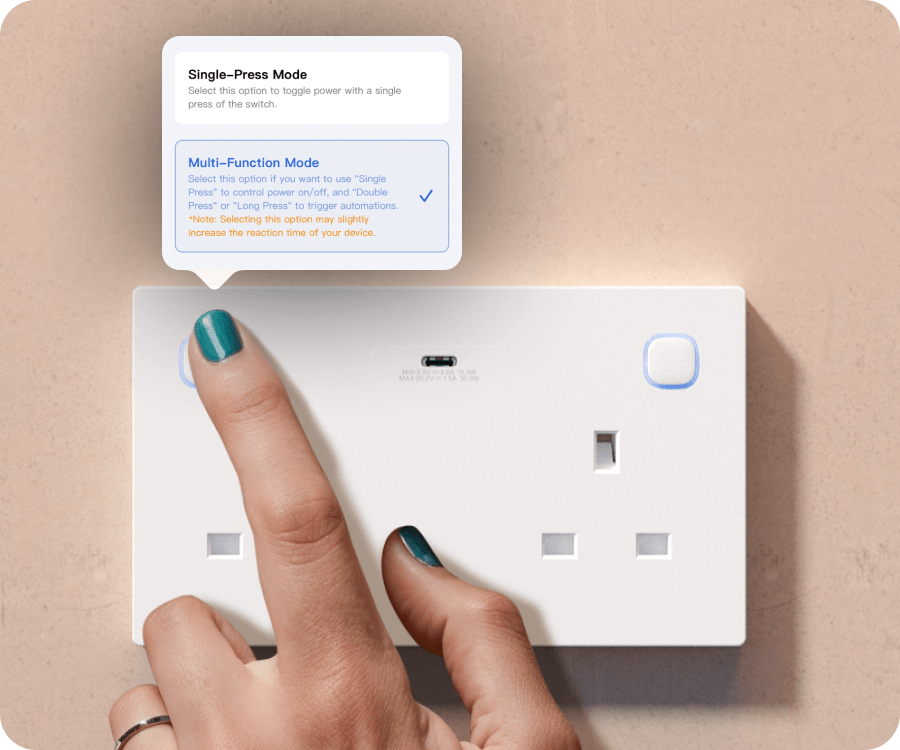

Expanded Button Functions
Go beyond simple on/off and program your outlet to execute multiple commands
- Single-Press Mode: Only turns the outlets on/off.
- Multi-Function Mode: A single press turns on/off the outlet. A double-press or long-press can trigger custom scenes, like dimming the lights for a movie night.

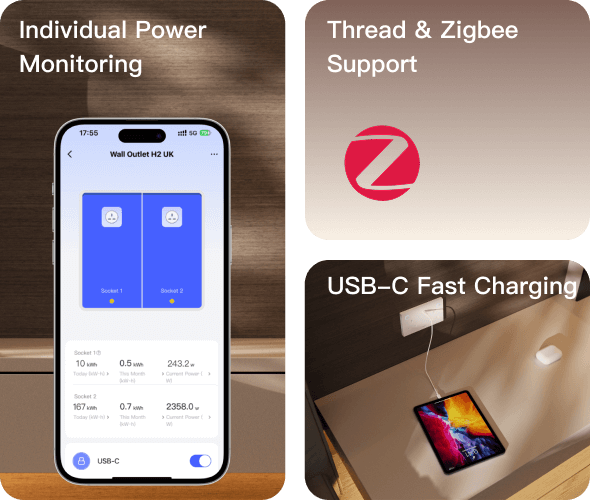

Power Monitoring Insights
Gain insights about your power use with detailed daily, weekly, and monthly electric consumption reports. This data helps adjust your behavior or create smart automations.
USB-C Fast Charging
The H2 wall outlet comes with additional USB-C fast charging port(s), so you can power up compatible devices rapidly. This port is also controllable from the Aqara Home app, allowing you to manage the USB-C output anytime.
Compare Charging Performance
Wall Outlet H2 UK is available in two versions: the Single USB-C version has one charging port, and the Dual
USB-C version has two charging ports.
| Feature | Single USB–C | Dual USB–C (Single Port Used) | Dual USB–C (2 Ports Used) |
|---|---|---|---|
| Max Port Output | 20W | 30W | 15W total |
| Charging Speed for iPhone | Fast charging (30–50% in 30 minutes for iPhone 12/13/14) | Faster charging (up to 50% in 30 minutes for iPhone 12/13/14) | Slow to normal charging (50–60 minutes for iPhone 12/13) |
| Charging Speed for iPad | Slower charging for larger iPads, normal charging for smaller iPads | Faster charging for iPad Air and iPad Pro (11–inch/12.9–inch) | Normal charging for smaller iPads, slower charging for larger iPads |
| Compatible Devices | Smartphones, Tablets, Smartwatches, Wireless Earbuds | MacBook Air (M1/M2), iPad Pro, Nintendo Switch, High–capacity Power Banks | Two smartphones, Smartphone + iPad, Smartphone + Wearables, Earbuds + Other USB–C device |
| Recommended Use Cases | Fast charging iPhone, AirPods, Apple Watch, and Android phones | Faster charging for iPad Pro, MacBook Air, or Nintendo Switch | Simultaneous charging of two smartphones or a mix of accessories |
| Laptop Compatibility | Not suitable for laptops | Supports MacBook Air and some low–power laptops | Not suitable for laptops |
Designed for A Safer Home
Child Lock
Our Child Lock feature disables the physical buttons on the outlet, preventing unintended use while retaining full control using the app or voice control.

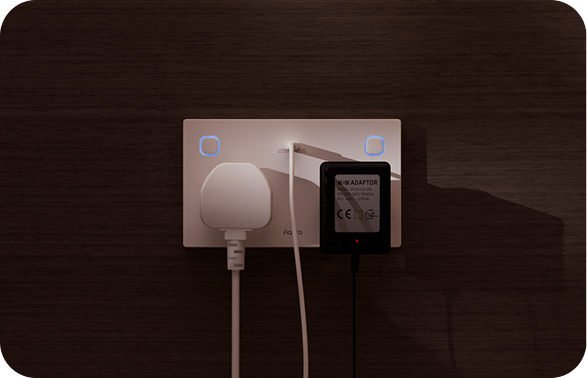

Overheat & Overload Protection
In the event of a power surge or an electrical fault, the outlet will automatically cut off power to prevent damage to your devices and protect your home.

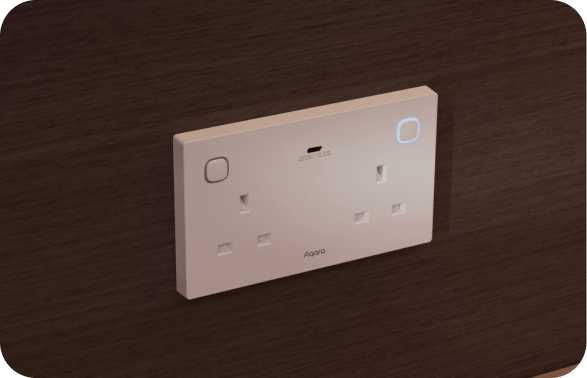

Customizable LED Indicators
Set your outlet’s LED indicator to match the power status, serve as a locator light, or turn it off completely for a clean, distraction-free look.
Create Automations to Make Your Home Smarter

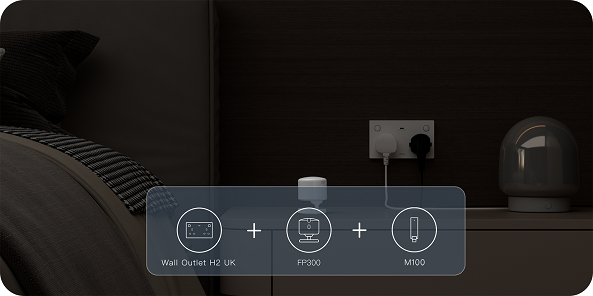

Presence Power Saver
WHEN Absence for 15 min
IF Light is off
THEN Turn off outlet 1 (TV), Turn off outlet 2 (Floor lamp)
Automatic Child Lock
WHEN Presence is detected
IF Child’s face is detected
THEN Enable Child Lock
Tech Specifications
| Model | Single USB-C: WP-P09E Dual USB-C: WP-P09D |
| Wireless Protocols | Thread, Bluetooth, Zigbee |
| Dimensions | 146 × 86 × 38.4 mm (5.75 × 3.39 × 1.51 in.) |
| Operating Temperature | -10°C ~ 40°C (14°F ~ 104°F) |
| Operating Humidity | 0 ~ 95% RH, non-condensing |
| Electrical Rating | 230-250 VAC, 50/60 Hz, Max 13 A, µ |
| USB-C Output | Single USB-C: 5.0V⎓3.0A / 9.0V⎓2.22A / 12.0V⎓1.67A, 20W Dual USB-C (single port used): 5.0V⎓3.0A, 15.0W / 9.0V⎓3.0A, 27.0W / 12.0V⎓2.5A, 30.0W / 15.0V⎓2.0A, 30.0W / 20.0V⎓1.5A, 30.0W Dual USB-C (dual ports used): 5.0V⎓3.0A (shared), 15.0W (total) |
| What is in the Box | WP-P09E: Wall Outlet H2 UK (Single USB-C) × 1, User Manual × 1, Screw Kit × 1, Compliance Statement × 1, 10 mm Spacer × 1 WP-P09D: Wall Outlet H2 UK (Dual USB-C) × 1, User Manual × 1, Screw Kit × 1, Compliance Statement × 1, 10 mm Spacer × 1 |
