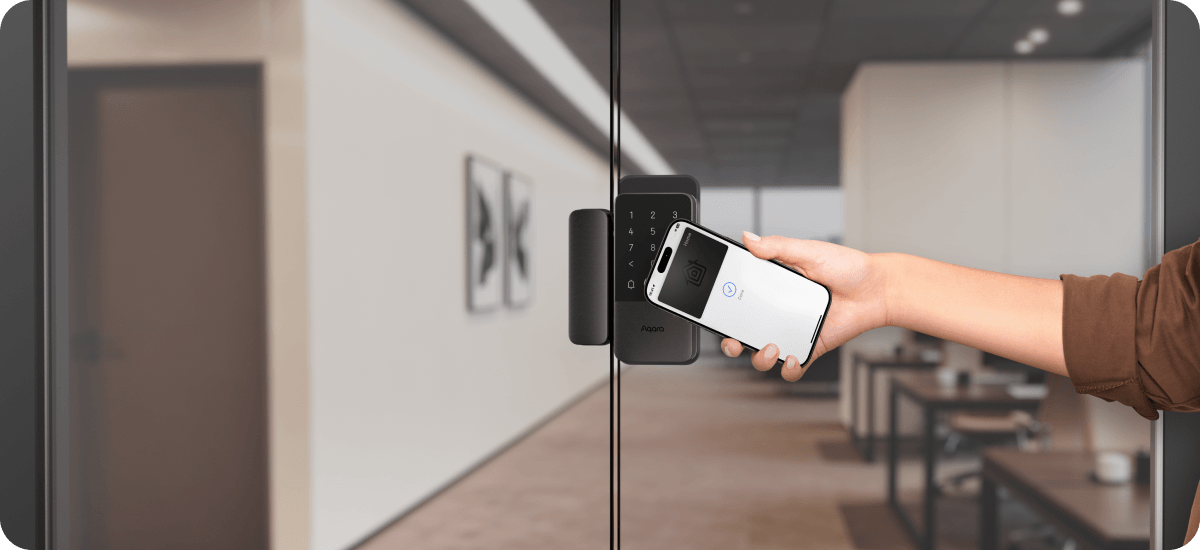

Convenient Unlocking with Apple Home Keys
Remote Home Key Sharing
Share remotely via the Apple Home app, easily grant access through Apple ID, with no extra apps or accounts required.
Out-of-Battery Unlock
The tap to unlock functionality will work even if your iPhone is out of battery or offline.
Matter over Thread
Powered by Matter over Thread and the new Aliro standard, U500 ensures secure and seamless access across major ecosystems including Apple Home, Home Assistant, Amazon Alexa, Google Home, and Samsung SmartThings.
Ultra-Responsive Biometric Accuracy
Equipped with a high-resolution 160×160 pixel sensor, this lock identifies your fingerprint instantly and accurately. It also stores up to 50 unique prints so your family and friends can come and go with a single touch.
Additional Unlocking Options for Enhanced Flexibility
Sturdy Hardware for Long-Term Reliability

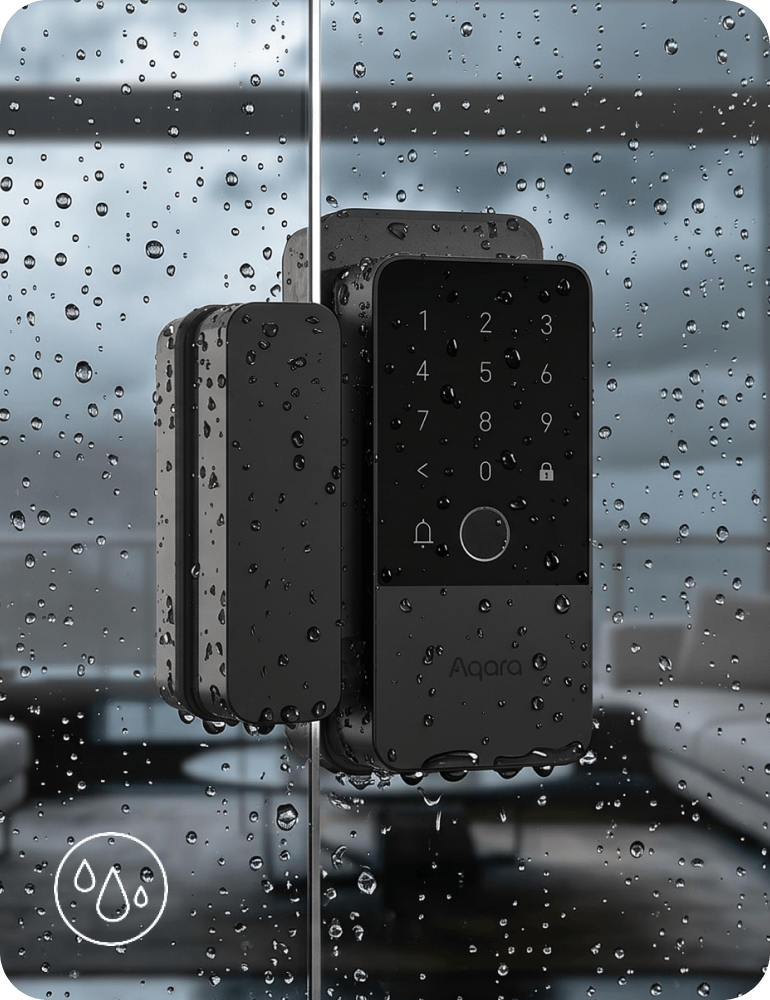

IP65 Weatherproof (Outer Panel)
Engineered to withstand dust, splashes, and heavy rain, the U500 lock delivers reliable performance even in demanding outdoor environments.

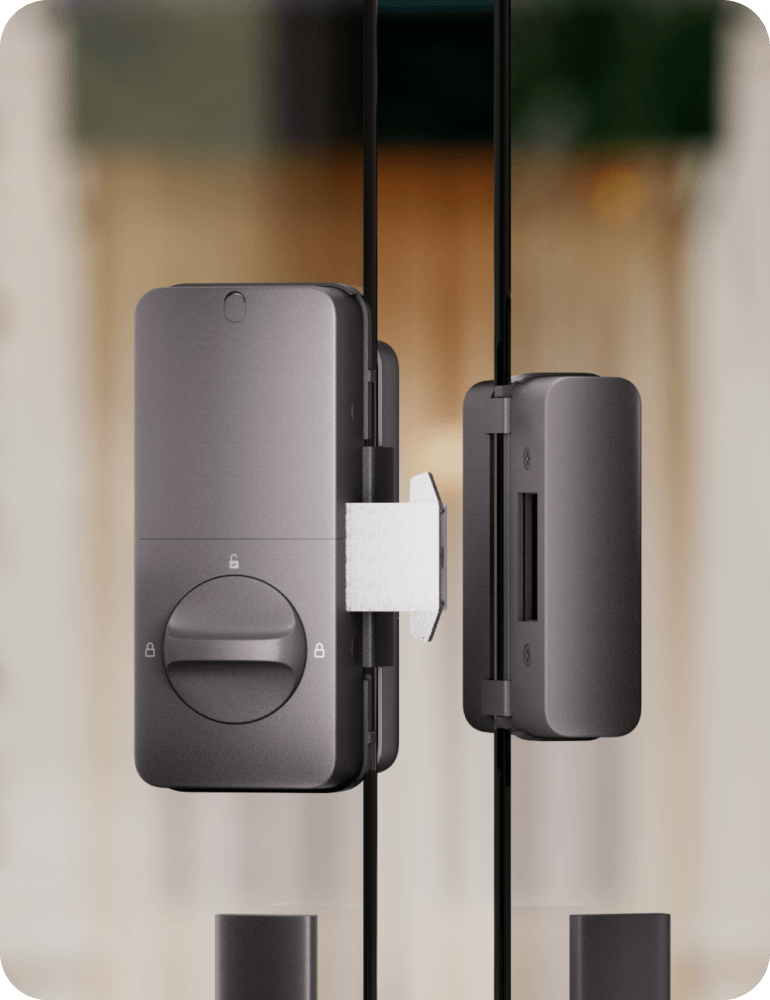

Built out of Solid Metal with Dual-Hook Latches
Forget flimsy plastic. With a full metal frame, reinforced dual-hook bolts, and a genuine through-lock cylinder, this system is built to withstand prying and forced entry for long-term peace of mind.

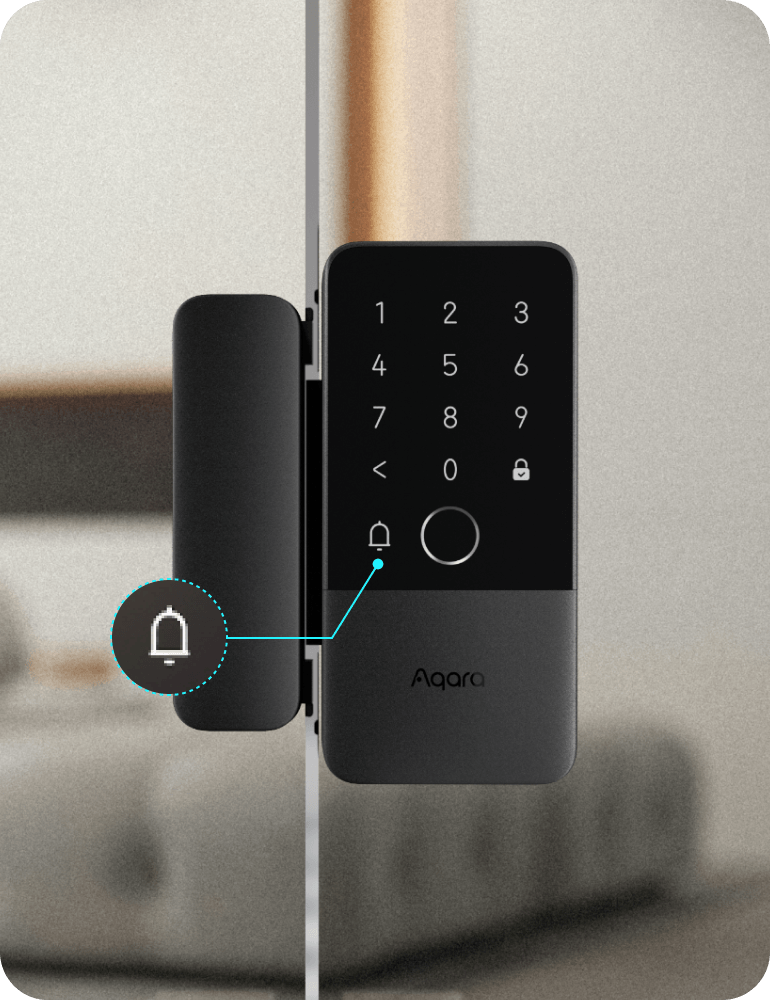

Dedicated Doorbell Button
The smart lock comes with a dedicated bell button, no need to buy a separate wireless doorbell.

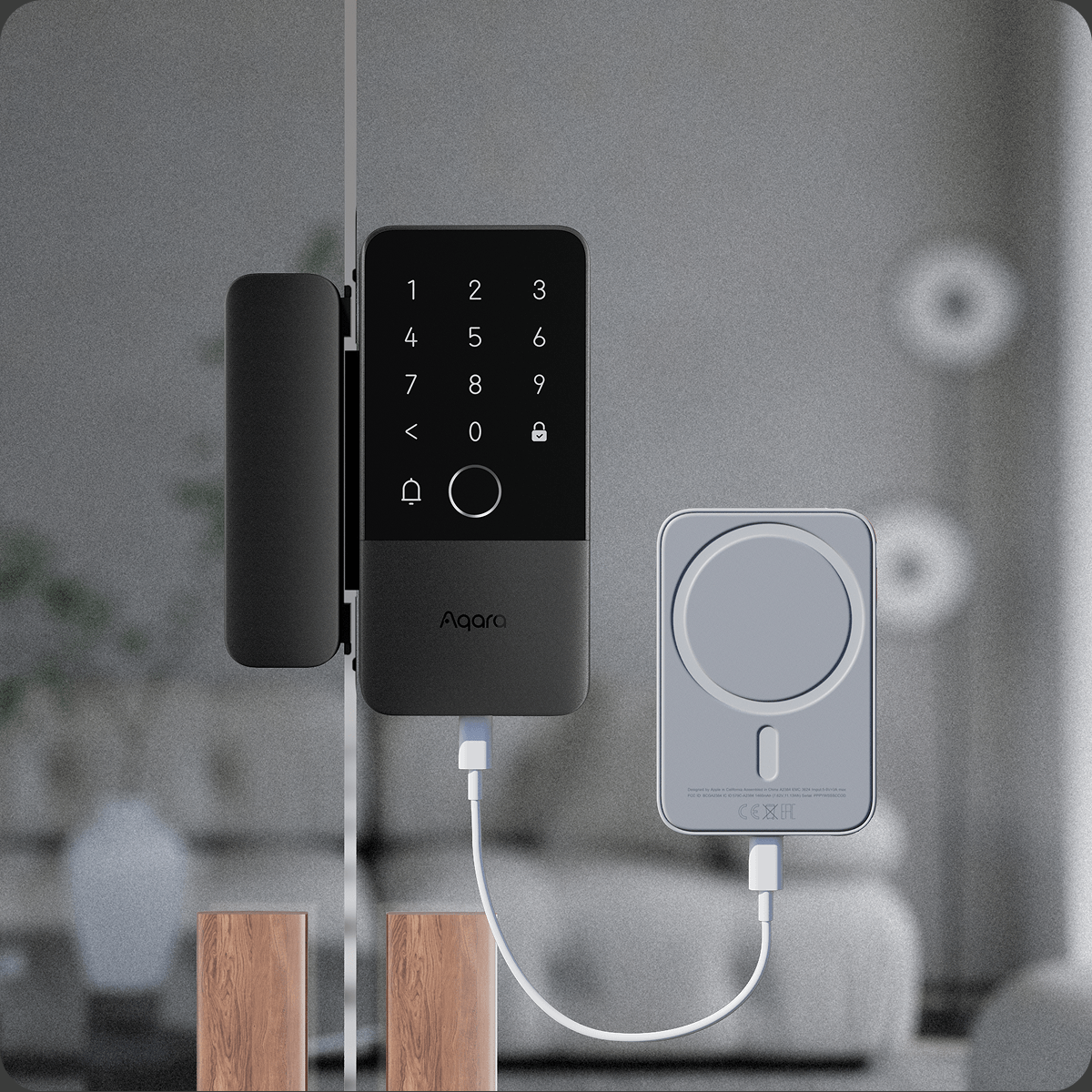

Reliable Power, Zero Battery Anxiety
Excellent Aqara Home Features
Create Automations to Make Your Home Smarter

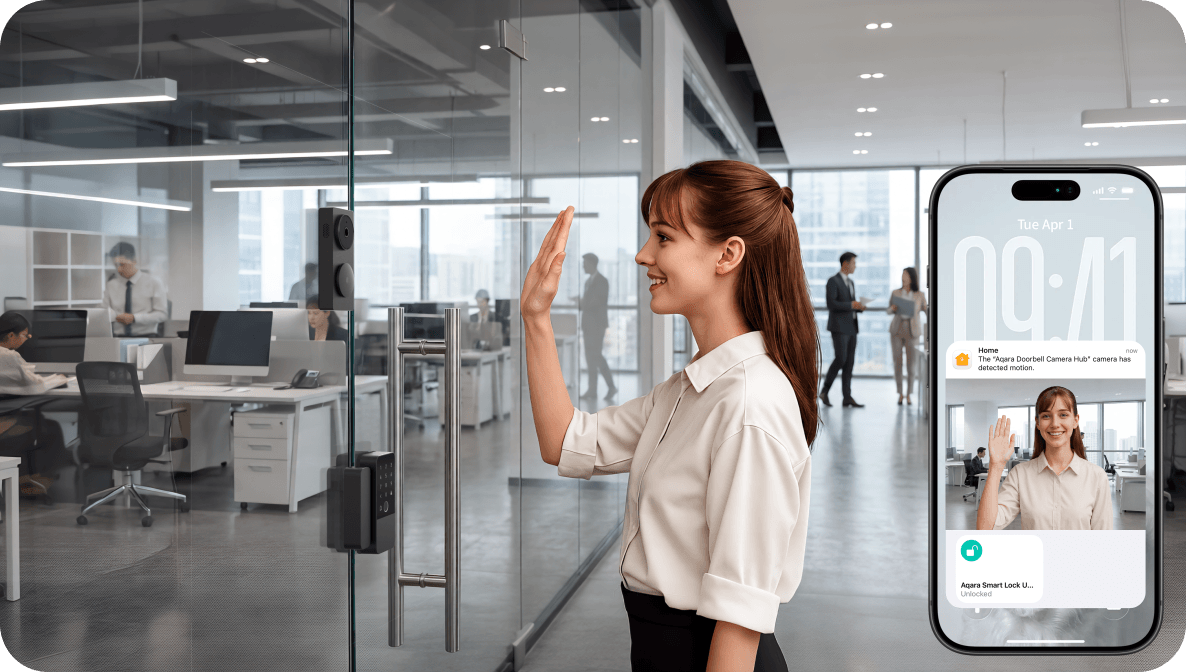

Enhanced Security with Aqara Doorbell
The Smart Glass Door Lock U500 integrates with the Aqara Doorbell Camera Hub G410 allowing you to see who is at the door and unlock directly from the Apple Home app.

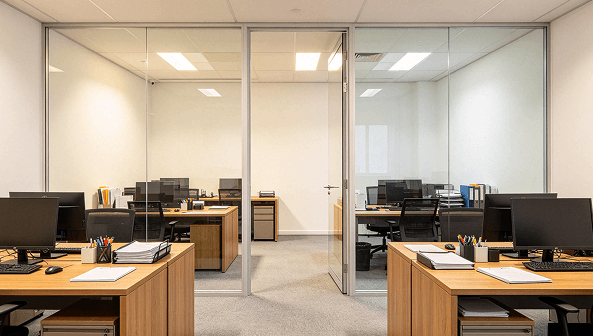

Open the Door, Activate Your Office
You can set up 'When-if-then' rules to trigger intelligent interactions based on real-time actions, for example, set the lights to turn on automatically when the door opens.
Integrated Lock Design, Easy Installation
Compatible with Single-swing and Double-swing Frameless Glass Doors
①Door Thickness: 8 - 12 mm
②Door Gap: 5 - 10 mm
Other Available Models
Dual-side security, inside and out.
Surface-mounted, modern smart lock for classic entrances.
Tech Specifications
| Product Model | DL-D20D |
| Dimensions | Inner Panel: 167 × 72.5 × 52.5 mm Outer Panel: 146.3 × 69.3 × 32 mm |
| Power Input | Type-C Power Supply 5V⎓1A |
| Battery | 4 LR6 AA 1.5V Batteries ⎓ |
| Wireless Protocols | Thread, Bluetooth, NFC |
| Protection Rating | IP65 (Outer Panel), IP54 (Inner Panel) |
| Operating Temperature | Inner Panel: -18°C~+50°C Outer Panel: -35°C~+66°C |
| Operating Humidity | 0 ~ 93% RH, No Condensation |
| What is in the Box | Smart Glass Door Lock U500 × 1, Strike Box × 1, Mechanical Keys × 2, AA batteries × 4, Accessories Kit × 1, User Manual × 1 |
