Curtain Controller C100

Curtain Controller C100

Compact Mini Motor for Automated Curtain Control

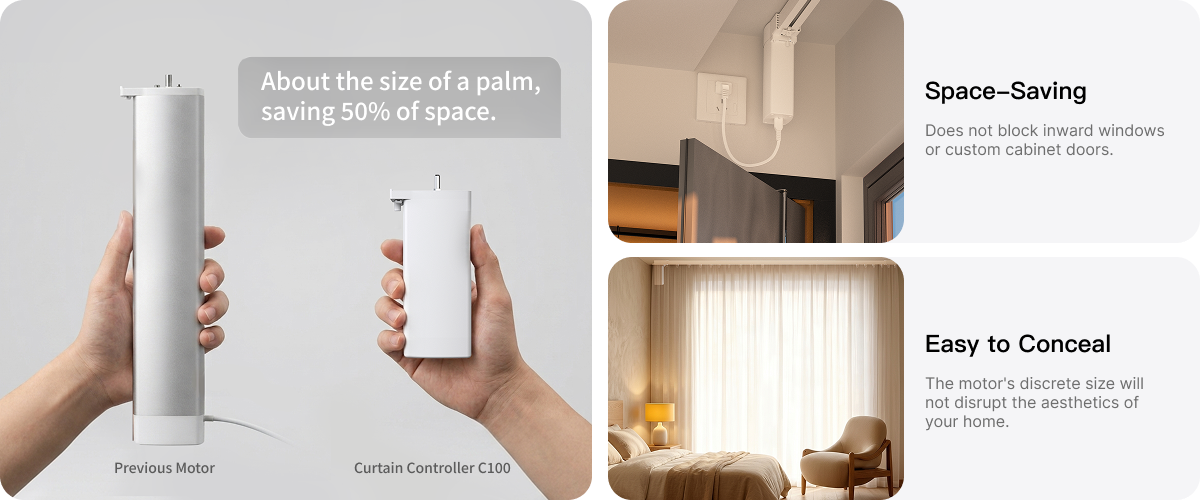

A Slim Mini Motor, Small and Elegant Enough to Blend In

The device's slim design priorities subtlety and functionality, lt measures 2.8x2x6.3 inches(71.1x50.8x161mm) which is comparable to a modern iPhone. At half the size of it's predecessor, it fits elegantly into any home décor.

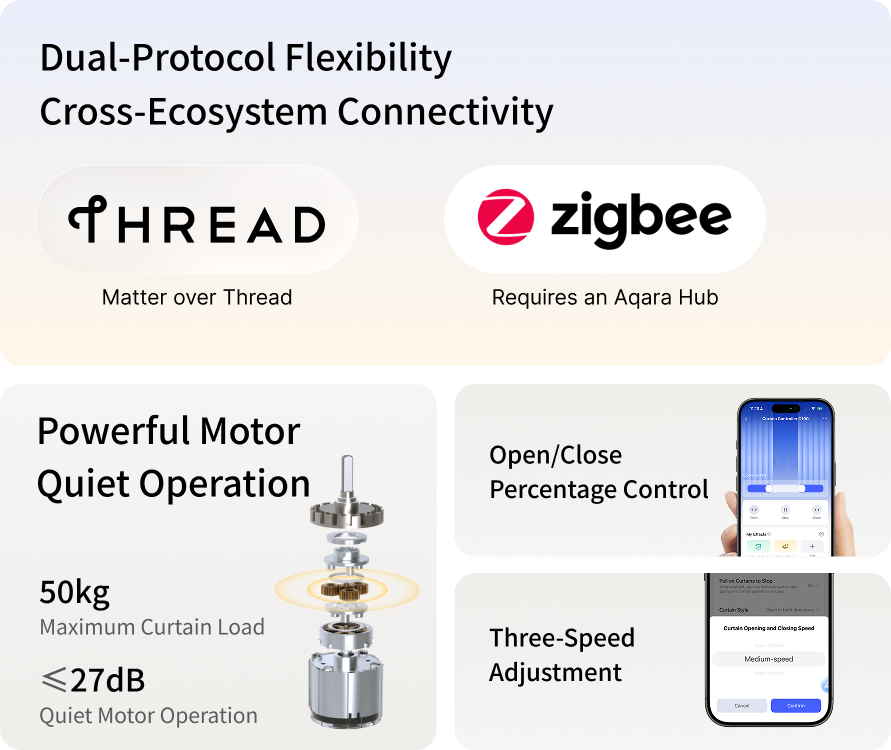

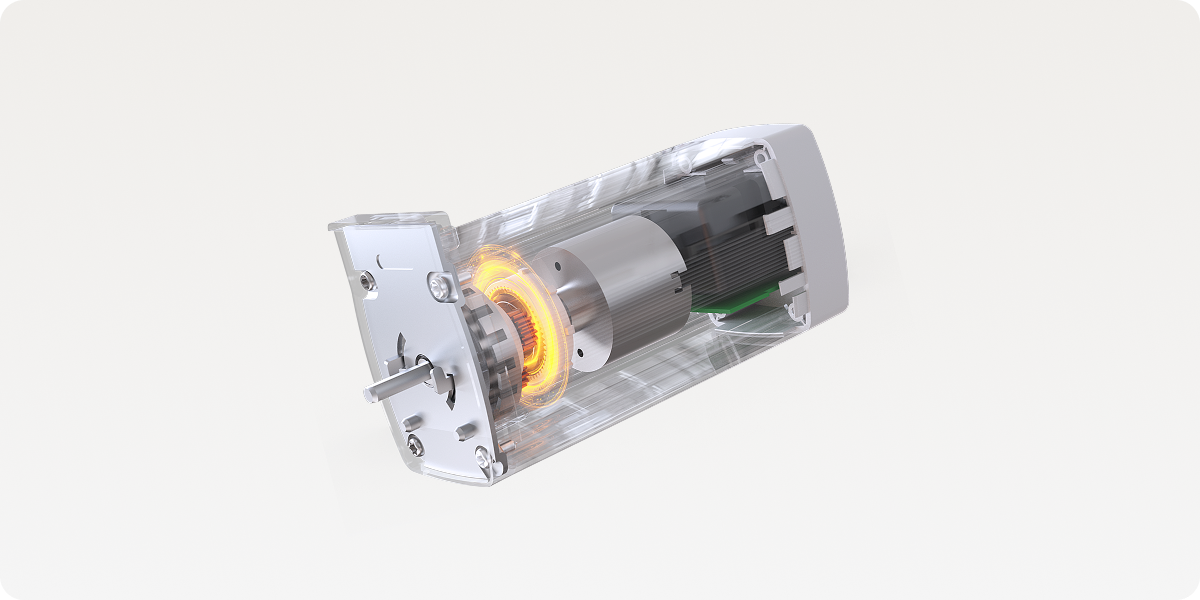

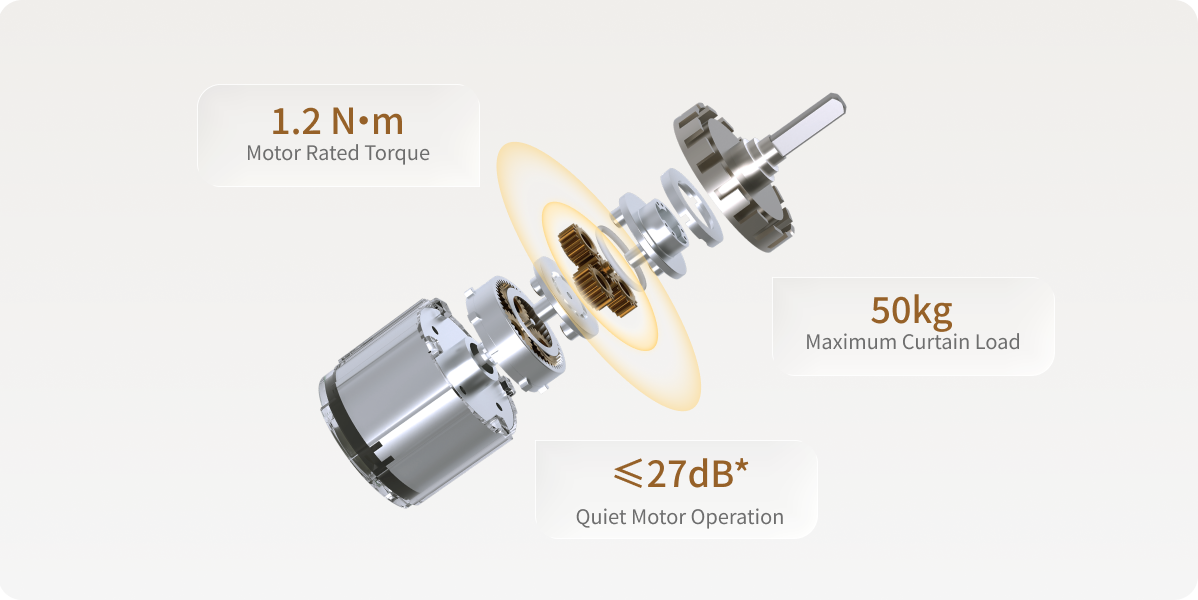

Powerful Motor, Quiet Operation

Three-Phase Motor

Multi-Stage Efhcient Drive Structure

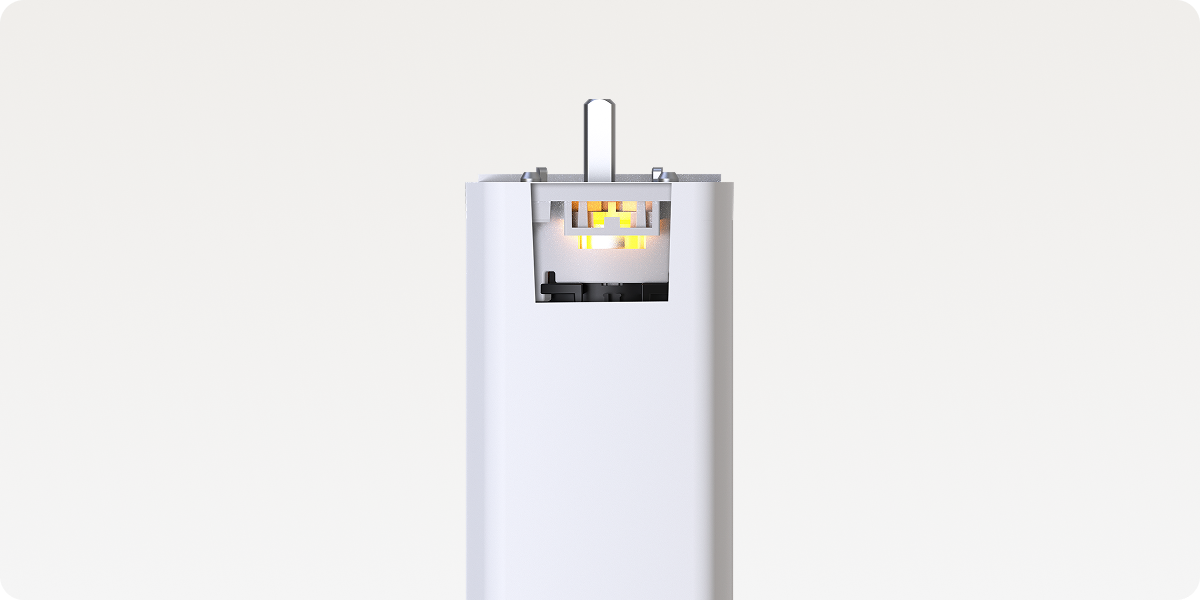

Infrared Pair Sensor Detection

Stable current reduces electromagnetic noise. Smooth operation signifcantly lowers energy consumption.

* Rated at ≤27dB in Aqara labs (no-load). Actual noise levels may vary based on curtain and track conditions.

Dual-Protocol Flexibility, Cross-Ecosystem Connectivity

The device supports both Zigbee and Matter over Thread protocols for total flexibility. You can easily switch between protocols based on your preferences.

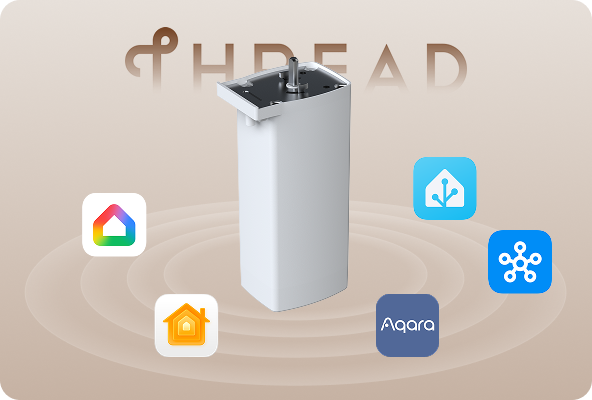

Matter over Thread Protocol

Matter over Thread Protocol

Easily integrate into major ecosystems through Matter*, such as Apple Home, Google Home, Samsung SmartThings, Home Assistant, Homey, Yandex.

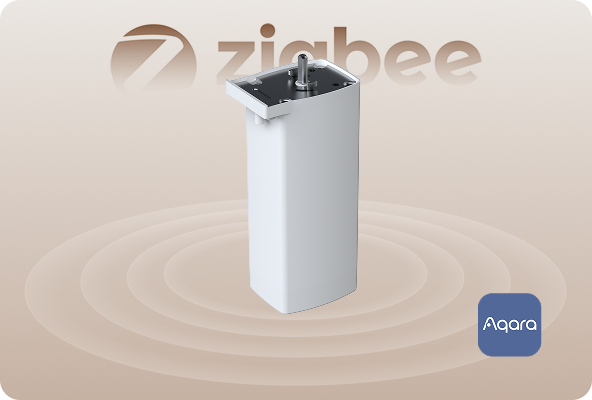

Zigbee Protocol

Zigbee Protocol

In Zigbee, using an Aqara hub, the device can be connected directly to Aqara Home or to 3rd party Apps through Aqara Home.

* A Matter Controller of the certain ecosystem and a Thread Border Router are required.
* *Support for Amazon Alexa is planned for a future release.

Multiple Smart Curtain Control Methods

Control your curtains with a simple "Hey Siri," a tap, a schedule, or an automated scene, and adjust natural light anytime, anywhere.

*This product can be controled using Aqara devices such as wireless switches and Cubes, and requires an Aqara hub to function.lt does not currently support control from Aqara screen devices.

Full Apple Home Compatibility

Simply add the device to the Apple Home app and control your curtains with your iPhone, Apple Watch, and other Annle devices Fnioy Advanced Annle Home features

Apple Watch Hand Gestures

Apple Watch Hand Gestures

Control your curtains with Apple Watch hand gestures, such as clenching your fstor Double Tap.

Siri Shortcuts

No manual operation needed. When your iPhone alarm goes off, the curtains opento gently wake you up.

iPhone Action Button

iPhone Action Button

Press the Action Button* once to toggle the curtains and instantly create yourpreferred ambiance.

Apple Watch Hand Gestures

Siri Shortcuts

iPhone Action Button

No manual operation needed. When your iPhone alarm goes off, the curtains opento gently wake you up.

*To use the device with Apple Home, an Apple home hub is required.

**Curtain control via the Action Button requires an iPhone model with the Action Button.

Multiple Customization Features

Freely customize speed, opening level, and modes to match your habits and scenes, with precise control over every curtain movement.

Accordion Image

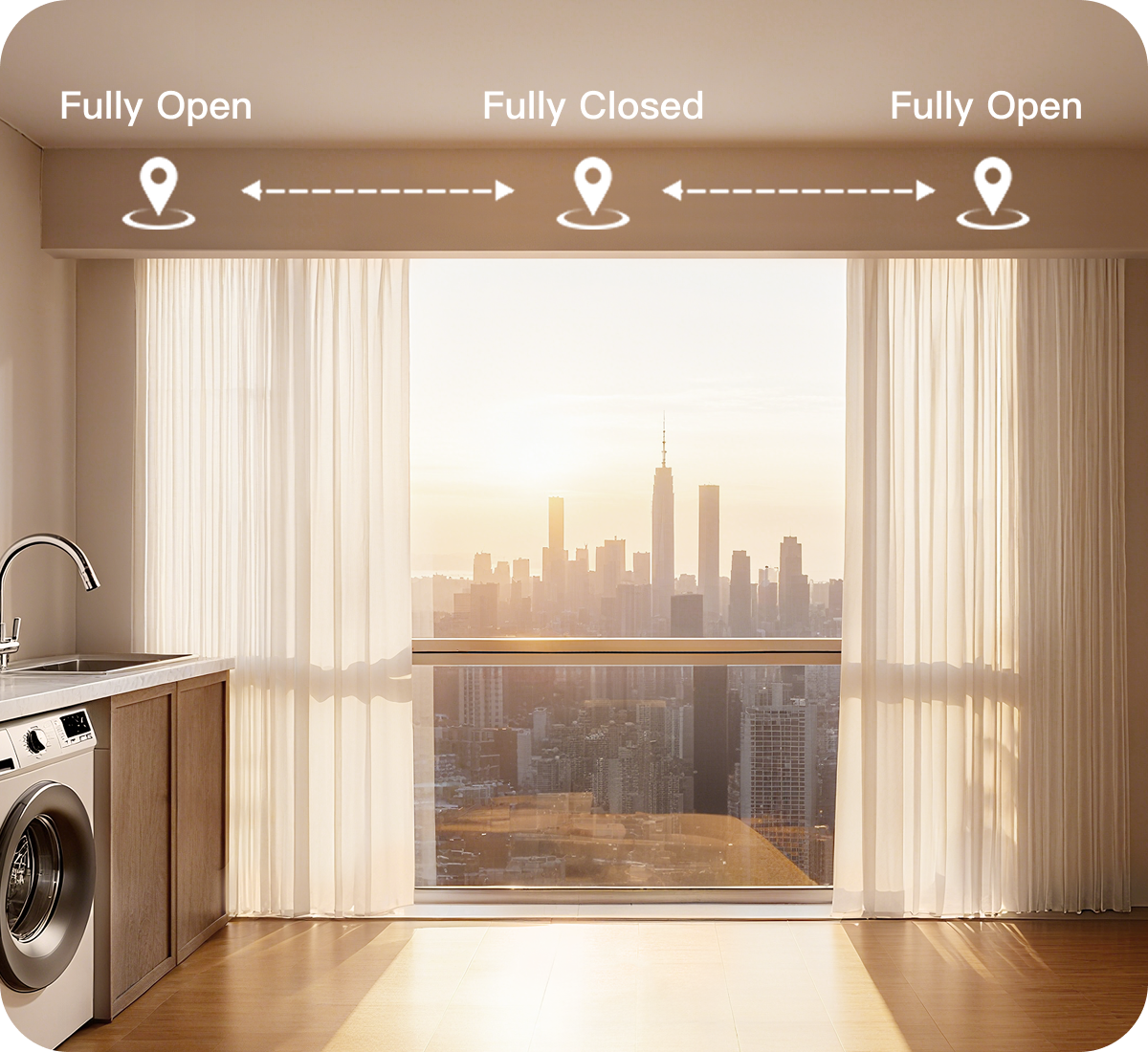

Customizable Travel Points

Be in full control of your natural light

Customizable Travel Points

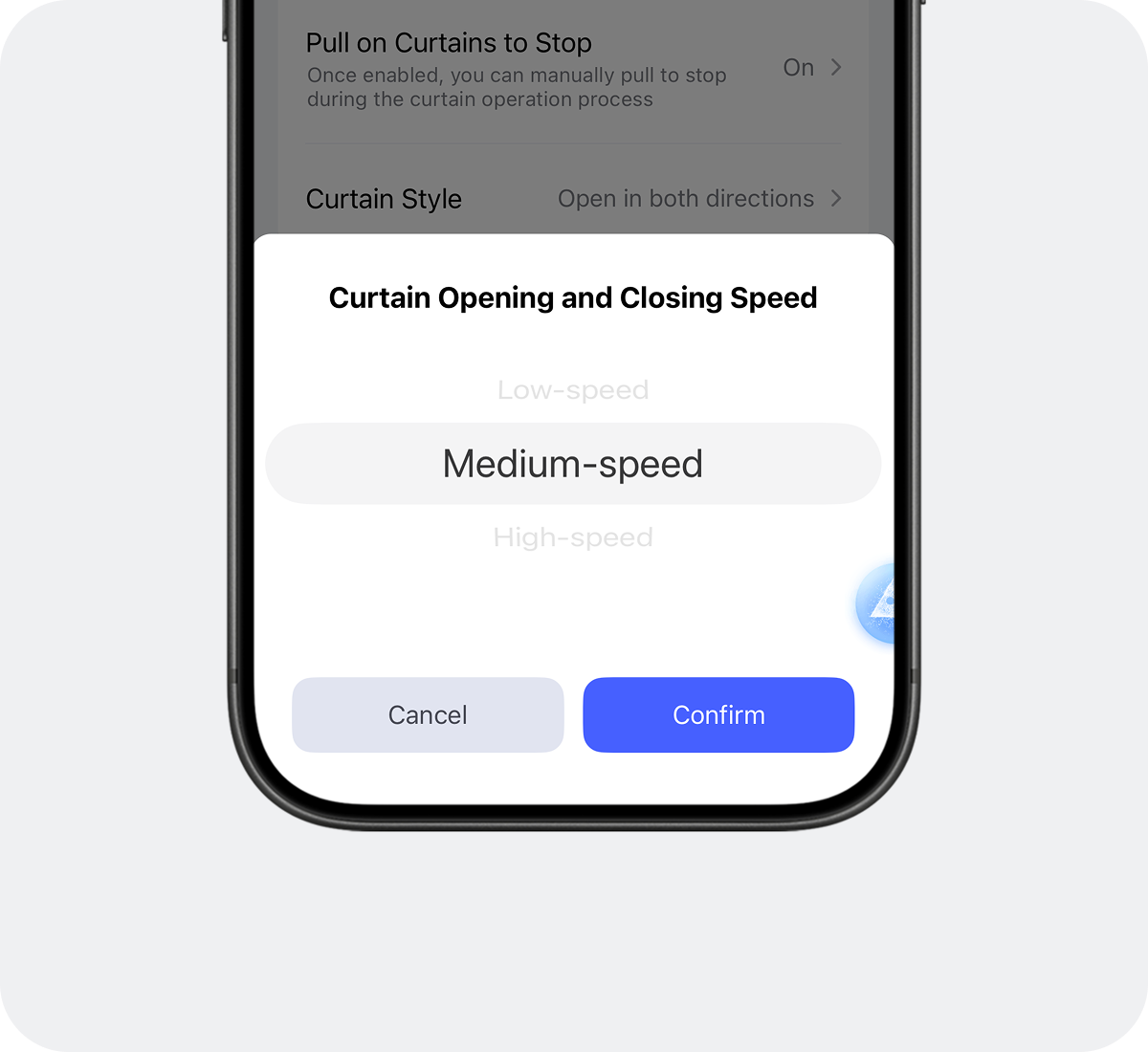

Three-Speed Adjustment

Freely adjust curtain opening and closing speed tosuit different daily rhythms.

Three-Speed Adjustment

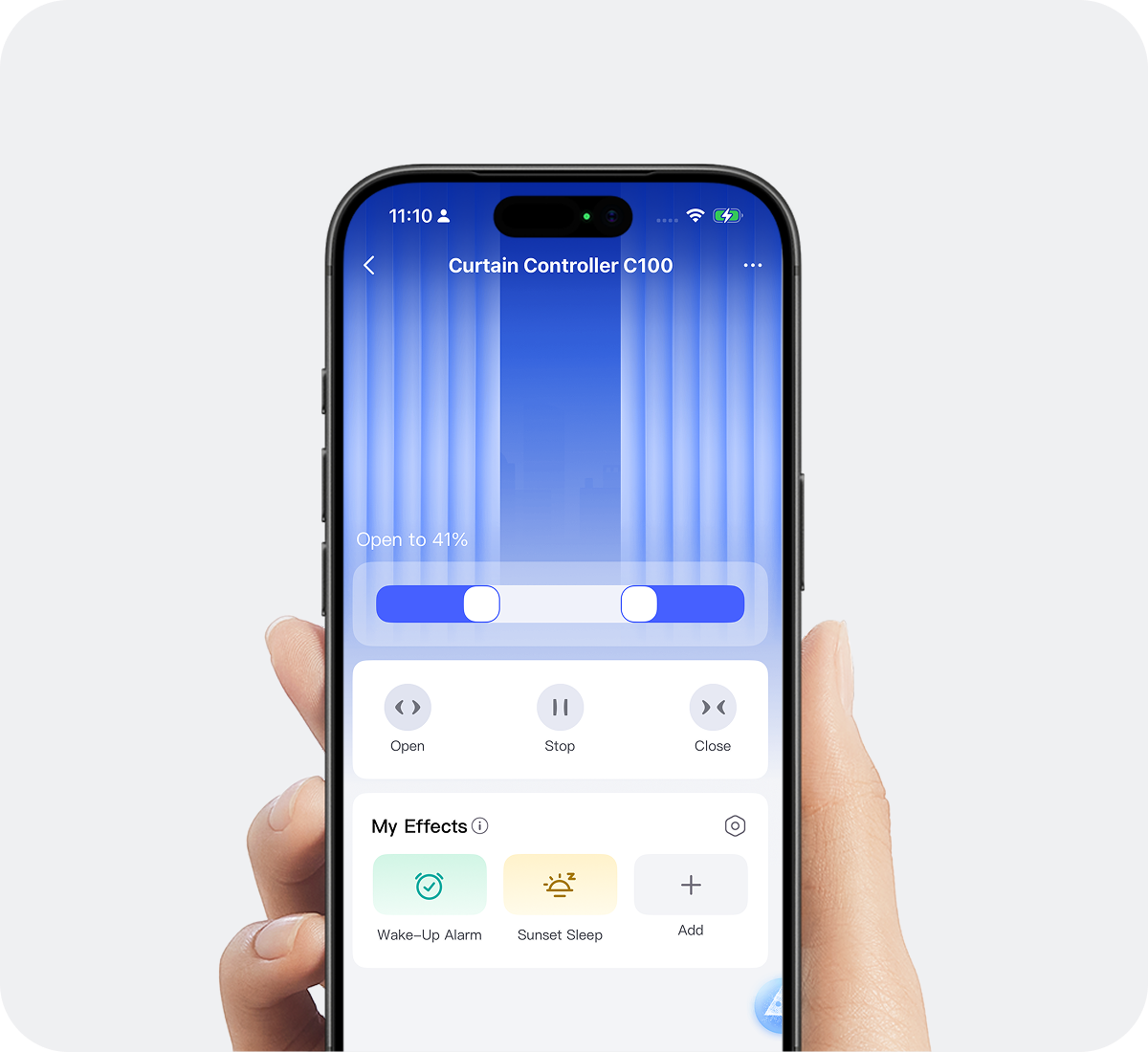

Open Percentage Control

Choose exactly how far the curtain opens.

Open Percentage Control

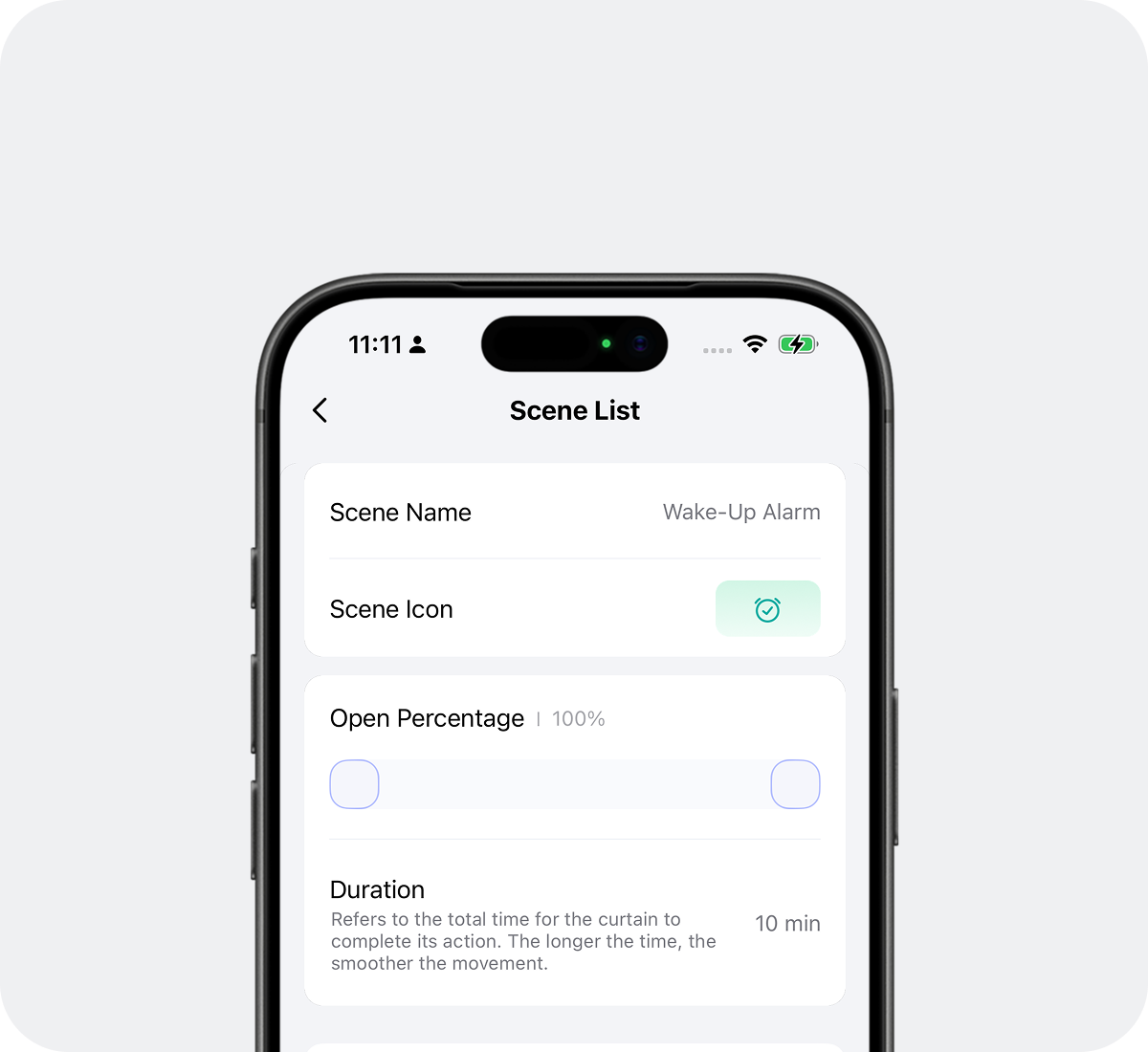

Scene Mode

Create custom curtain modes, such as Wake-UpMode, to slowly open the curtains over 30 minutes inthe morning and wake you gently with natural light.

Scene Mode

Flexible Installation Options

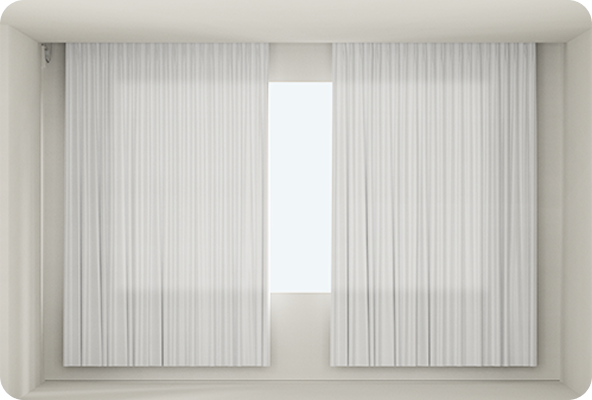

Double-Curtain Installation

Double-Curtain Installation

One curtain panel on each side, opening from the center.

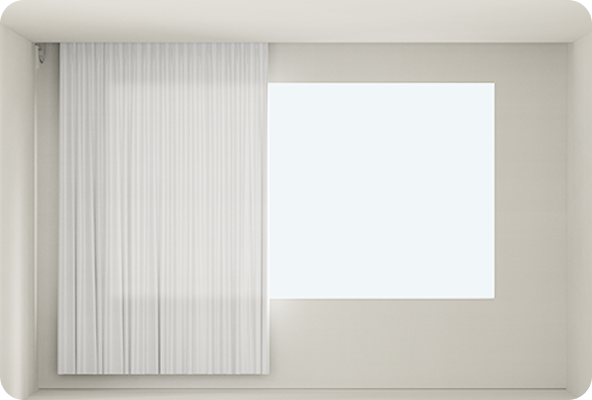

Single-Curtain Installation

Single-Curtain Installation

One curtain panel, with left-opening or right-opening options.

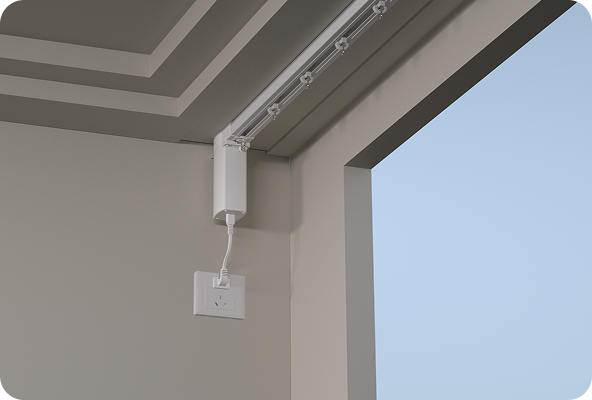

Ceiling-Mounted Single Track

Ceiling-Mounted Single Track

Can be installed with or without a curtain box. Inner width of curtainbox: ≥4 inch(10cm).

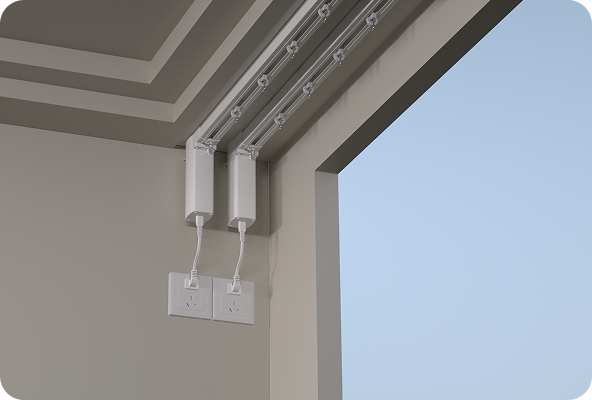

Ceiling-Mounted Double Track

Ceiling-Mounted Double Track

Can be installed with or without a curtain box. Inner width of curtainbox: ≥8 inch(20cm).

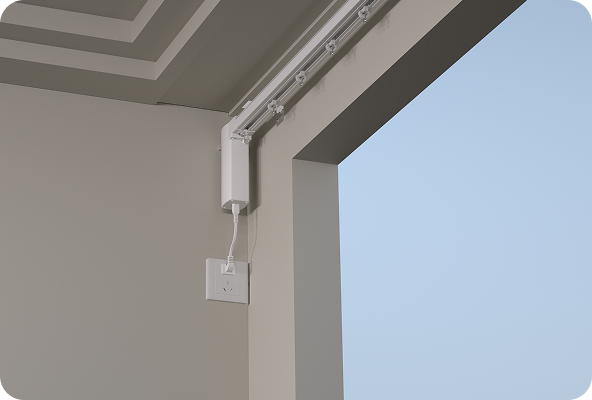

Wall-Mounted Single Track

Wall-Mounted Single Track

For installations without a curtain box only. Requires a single-trackwall-mount bracket.

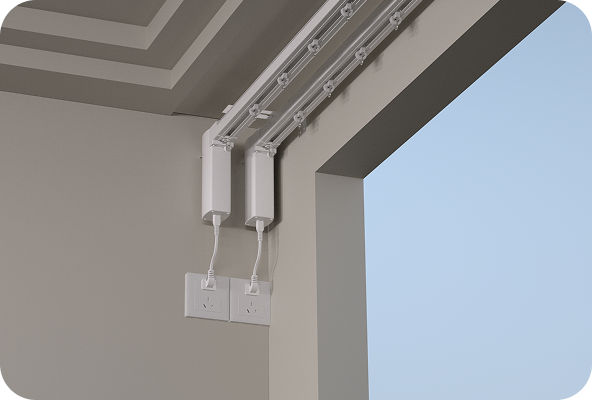

Wall-Mounted Double Track

Wall-Mounted Double Track

For installations without a curtain box only. Requires a double-trackwall-mount bracket.

Smart Automations

WHEN The door is close
IF No presence is detected in the room
THEN Close the curtains

WHEN The wireless switch is pressed
IF Someone is detected in the sofa area
THEN Automatically close the curtains and turn off the lights

Important Notes Before installation

1m Power Cable
Plug Not included

Not Compatible with Grommet-Style Curtain Rods

Don't Install on Plaster's Ceilings
Due to The Risk of Falling

Curved Surfaces Are Not Supported

*For detailed installation stens. please refer to the installation video.

Curtain Controller C100

Tech Specifications

Product Name	Curtain Controller C100
Product Model	CD-M15D
Operating Voltage	100-240V~, 50/60Hz
Rated Power	36W
Rated Current	0.2A
Rated Speed	75 r/min (adjustable: 60/90 r/min)
Travel Speed	12 cm/s (adjustable: 10/14 cm/s)
Protection Rating	IP40
Thermal Class	Class F
Rated Torque	1.2 N·m
Duty Cycle	S2 3 min
