Dual PIR and mmWave Sensors for Precise Presence Detection

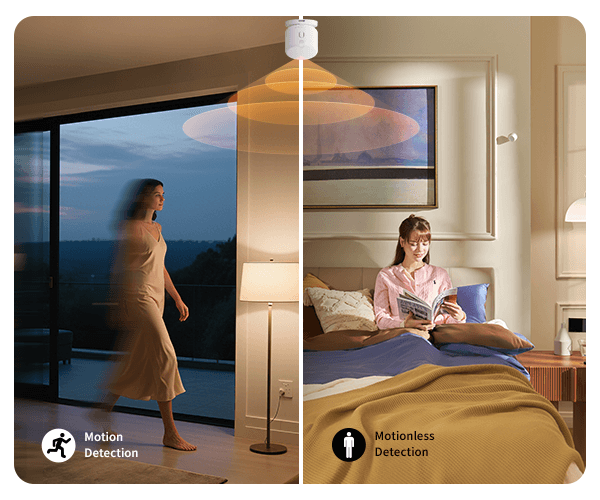

Presence Multi-Sensor FP300 uses PIR and 60GHz mmWave radar to detect both motion and stationary presence with high precision, minimizing false absence reports.
It offers a 120° field of view with a maximum detection range of 6m, comprehensively covering whichever area it’s installed in.
Light, Temperature, and Humidity Sensor for Home Comfort
Apart from presence detection, FP300 comes with
- A temperature sensor that ensures your climate control is always optimized for comfort and efficiency.
- A humidity sensor to monitor and maintain indoor humidity levels.
- An ambient light sensor for smart control of lights.
Create Automations to Make Your Home Smarter
Adaptive Lighting Control
IF presence is detected and illuminance is under 400 lux
THEN turn on the desk lamp
Energy-Efficient Cooling
IF presence is detected and the temperature is over 28°C
THEN turn on the air-conditioner
AI-Powered Detection
Built with advanced AI, FP300 learns, adapts, and understands its surroundings to provide the most accurate presence detection available.
- The sensor learns and automatically adjusts its detection sensitivity to suit your environment.
- Through continuous AI learning, it builds a deep understanding of your space, filtering out micro-motion interferences in the environment.
Battery-Powered, Long-Lasting Life
The FP300 sensor is powered by two replaceable CR2450 batteries, providing reliable performance for up to 3 years in Zigbee mode and up to 2 years in Thread mode*, eliminating the hassle of constant charging.
You can also disable certain sensors or decrease reporting interval** depending on specific detection needs, further extending battery life.
**Zigbee mode via the Aqara Home app is required to achieve this functionality.
Zigbee & Thread Dual-Protocol Support

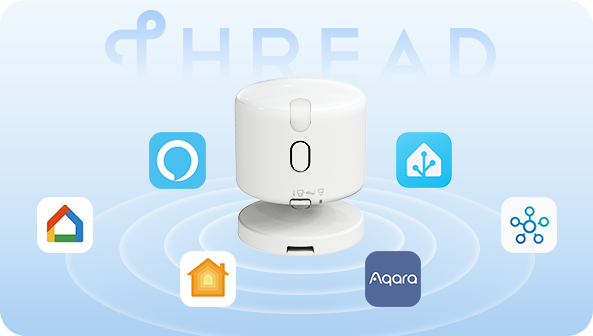

Thread Mode
Integrate with multiple platforms through the Matter framework, including Apple Home, Google Home, Alexa, Home Assistant, SmartThings, Homey, and more.
Zigbee Mode
Using the Zigbee protocol, you will unlock exclusive features in the Aqara Home app, while also enjoy Matter compatibility through an Aqara Hub.
Exclusive Features under the Zigbee Protocol
The FP300 offers extensive customizable settings through the Aqara Home app on Zigbee mode:
- Detection mode and range adjusting
Enable/disable/customize light, temperature and humidity sensor - Temperature and Humidity sensor sampling/reporting frequency adjusting
- Absence delay timer

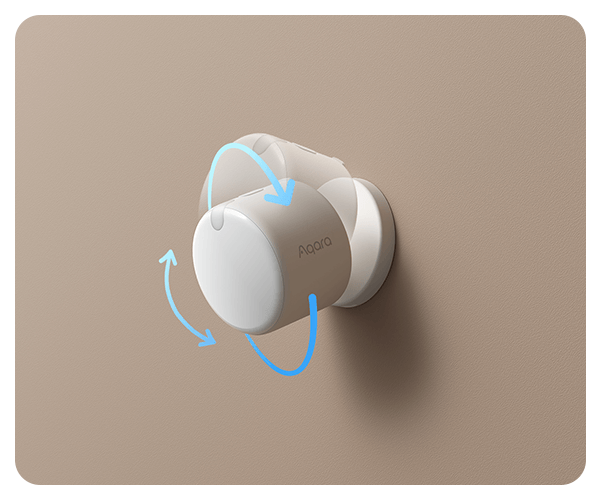

Flexible & Wireless Placement
On the Wall
On the Ceiling
In the Corner
On Magnetic Surfaces*

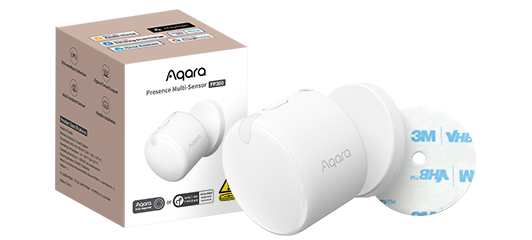

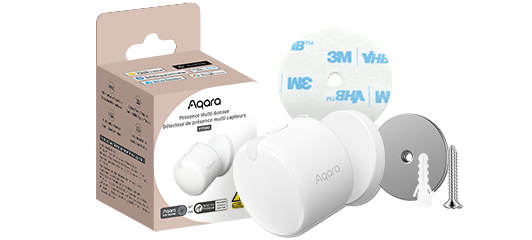

Available in Two Versions
PS-S04E
PS-S04D
Compare to Find Your Home’s Fit
| Presence Multi-Sensor FP300 | Presence Sensor FP1E | Presence Sensor FP2 | |
|---|---|---|---|
| Detection Sensors | Presence (mmWave Radar and PIR) Temperature Humidity Light |
Presence (mmWave Radar) | Presence (mmWave Radar) Light |
| Supported protocol | Zigbee 3.0, Thread, Bluetooth | Zigbee 3.0 | Wi-Fi 2.4 GHz |
| Matter Support | Matter over Thread Matter over Bridge (a compatible Aqara hub is required) |
Matter over Bridge (a compatible Aqara hub is required) | Matter over WiFi |
| Maximum distance and angle of presence detection | 6m, 120° | 6m, 120° | 8m, 120° |
| Power Supply | Battery-powered | USB-A, 5V1A | USB-A, 5V1A |
| Senitivity Adjustment | Self-adaptive | Self-adaptive | Manual |
| Fall Detection |  |
|
 |
| Multi-person Detection | |
|
|
Tech Specifications
| Model | PS-S04E/PS-S04D |
| Wireless Protocols | Thread, Zigbee, Bluetooth |
| Dimensions | 42 × 42 × 50 mm (1.65 × 1.65 × 1.97 in.) | Operating Temperature | -10 °C ~ 50 °C (14 °F ~ 122 °F) |
| Operating Humidity | 0 ~ 95% RH, no condensation |
| Power Supply | Battery-powered, CR2450*2 |
| What's in the Box | PS-S04E: Presence Multi-Sensor FP300 × 1, User Manual × 1 PS-S04D: Presence Multi-Sensor FP300 × 1, User Manual × 1, Metal Plate × 1, Screw Kit × 1 |
