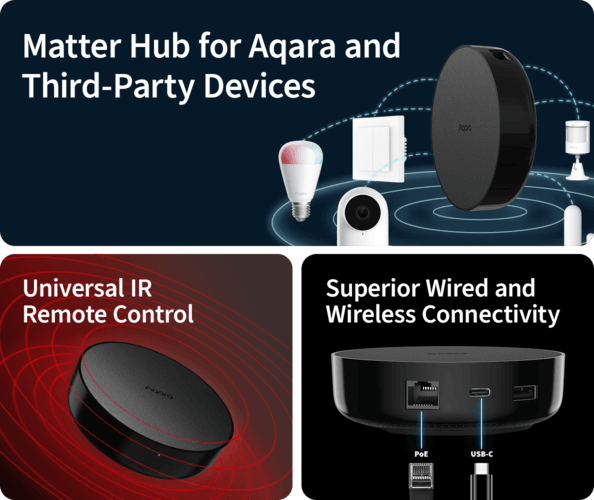

Matter Hub for Aqara and Third-Party Devices

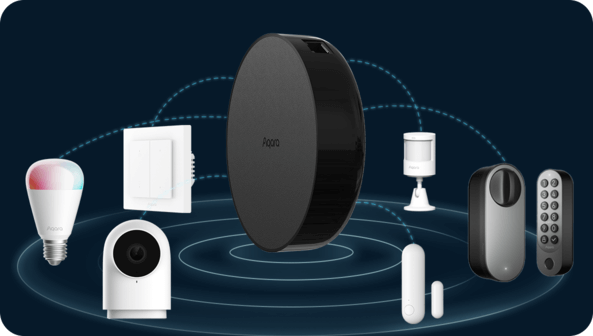

Matter Controller
Manage a wide range of Matter devices directly through the Aqara Home app, with support for over 50 device types—all under unified control.

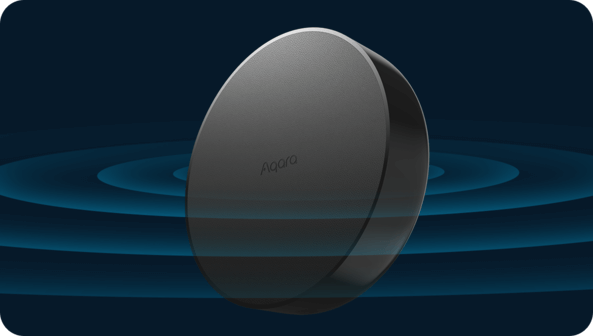

Thread Border Router & Mesh Extender
The M200 acts as a Thread border router, bridging it to your Wi-Fi or Ethernet network for seamless communication with smart speakers and hubs. It can also serve as a Thread mesh extender, extending the coverage and reliability of the Thread network.

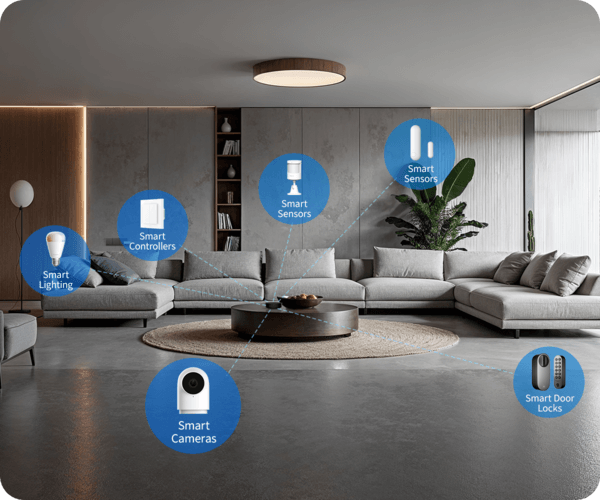

Hub & Matter Bridge for Aqara Zigbee Devices
The M200 functions as both an Aqara Zigbee hub and a Matter bridge. It connects Aqara Zigbee devices to major Matter ecosystems including Apple Home, Google Home, Alexa, SmartThings, and Home Assistant.

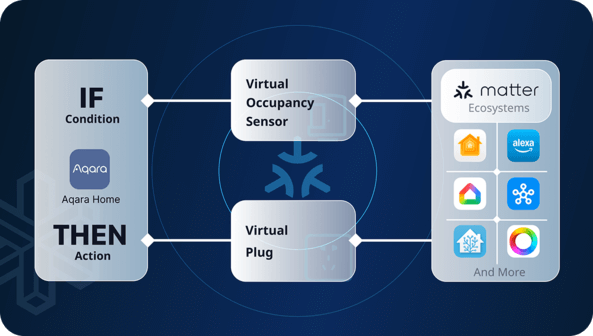

Advanced Matter Bridging
Advanced Matter Bridging goes beyond standard connectivity, it
enables unique Aqara features to function on third-party ecosystems. In this way, you can use your favorite Aqara products to their fullest no matter which ecosystem you prefer.
Universal IR Remote Control
The 360° IR blaster* sends commands and can detect when your existing remote control is used, ensuring accurate status updates. It can also connect IR-based air conditioners to Matter**, enabling thermostat-like functionality when used with an Aqara Climate Sensor. For reliable operation, we recommend installing the hub near the AC unit.
*Only one IR-controlled AC unit can be bridged to the AC mode function. For multiple AC units, please use the Advanced Matter Bridging functionality.
Superior Wired and Wireless Connectivity

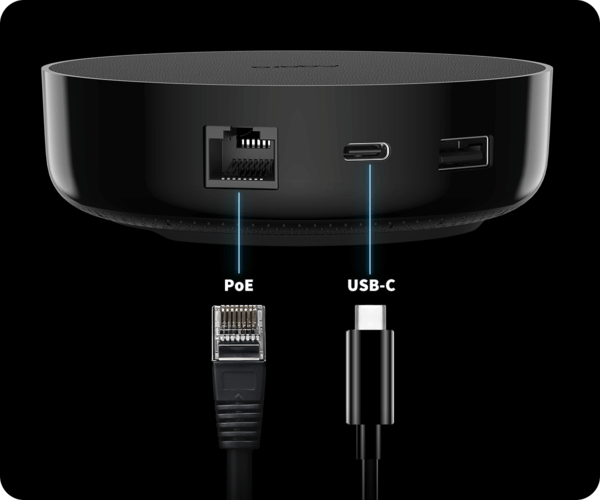

The M200 provides dual-band Wi-Fi (2.4/5 GHz) with advanced WPA3 security and flexible power options including Power over Ethernet (PoE) and USB-C.
Simple Yet Powerful Automations
Aqara Automations, recently upgraded to Automations 2.0, follow WHEN-IF-THEN logic for building strong and efficient automations. This allows for multiple device, situation, time and state conditions to be bundled into a single automation.
Automations previously triggered between the cloud and hubs will transition to local automations, ensuring they remain operational even during internet outages. Local automations are more robust, secure, and faster than cloud automations.
Built-in Speaker with Custom Audio Compatibility
The Aqara Hub M200 features a 90dB built-in speaker that serves multiple purposes, including doorbell alerts, alarm clock functions, security alert, and custom audio recordings that you can upload into the hub.
Voice Control with Aqara Voice Mate
The M200 enables voice control when paired with the Voice Mate H1, a compact Bluetooth microphone designed for private and flexible interaction.

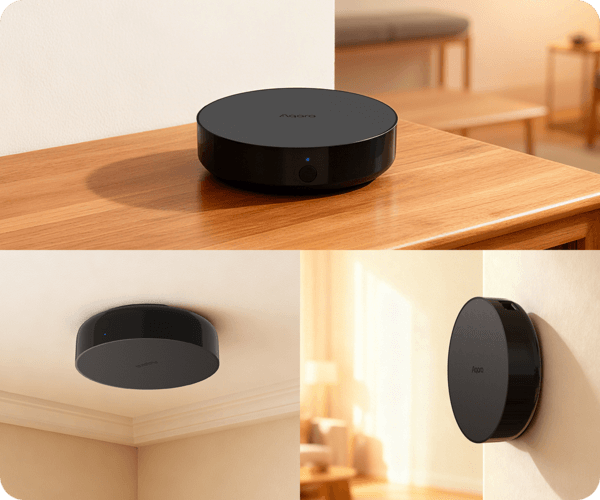

Flexible Mounting Options
The M200 can be placed directly on a flat surface or mounted securely on a wall or ceiling using a standard 1/4-inch threaded bracket.
Create Smart Automations

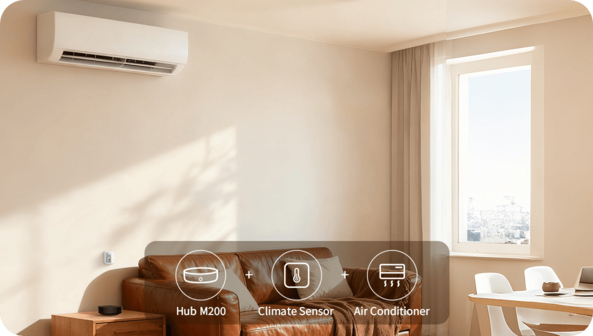

Temperature Control
WHEN the current temperature rises to 29.5°C
THEN turn on the air conditioner
Follow-Me Lighting
WHEN presence is detected for 3 seconds
THEN turn on the LED Strip
Hub Version Comparison
| Hub M200 | Hub M100 | Hub M3 | |
|---|---|---|---|
| Matter Controller |  |
|
|
| Thread Border Router |
|
|
|
| Matter Bridge | |
|
|
| IR Remote Controller | |
 |
|
| Hub for Aqara Zigbee Devices | |
|
|
| Local vs. Edge Computing | Local Hub |
Local Hub |
Edge Hub |
| Speaker | 90dB |
|
90dB |
| Connection | 2.4/5 GHz Wi-Fi |
2.4 GHz Wi-Fi |
2.4/5 GHz Wi-Fi |
| Power Supply | USB-C, PoE |
USB-A (Male) |
USB-C, PoE |
| Device Capacity | 40 Aqara Zigbee+
40 Thread |
20 Aqara Zigbee
+
20 Thread |
127 Aqara Zigbee
+
127 Thread |
| MARS Tech | |
|
|
Tech Specifications
| Dimensions | ⌀100.5 × 30.75 mm (⌀3.96 × 1.21 in.) |
| Power Input | 5V⎓2A |
| PoE Input | 48V⎓0.25A |
| Wireless Protocols | Wi-Fi IEEE 802.11 a/b/g/n/ac/ax 2.4GHz/5GHz, Zigbee/Thread IEEE 802.15.4, Bluetooth |
| Speaker | 90 dB (10 cm) |
| Ports | RJ45 PoE × 1, USB-A × 1, USB-C × 1 |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Operating Humidity | 0 ~ 95% RH, no condensation |
| What is in the Box | Hub M200 × 1, User Manual × 2, USB-A to USB-C Cable × 1 |
