Specifications

Color

White

Model

CH-H03

Wireless Protocols

Zigbee 3.0 IEEE 802.15.4, Wi-Fi IEEE 802.11 b/g/n/a/ac 2.4/5 GHz, supports WPA3

Dimensions

123.4×85.1×67.8 mm (4.86×3.35×2.67 in.)

Operating Temperature

-10°C ~ 40°C (14°F ~ 104°F)

Operating Humidity

0 ~ 95% RH, no condensation

What is in the Box

Camera Hub G3 × 1, User Manual × 1, Power Adapter × 1, Power Cable × 1

Ports

USB-C

Input Power

5V⎓2A

Total Power Consumption

10W (MAX)

Local Storage

MicroSD card (not included). CLASS 4 or above is supported, up to 128 GB storage.

Video Resolution

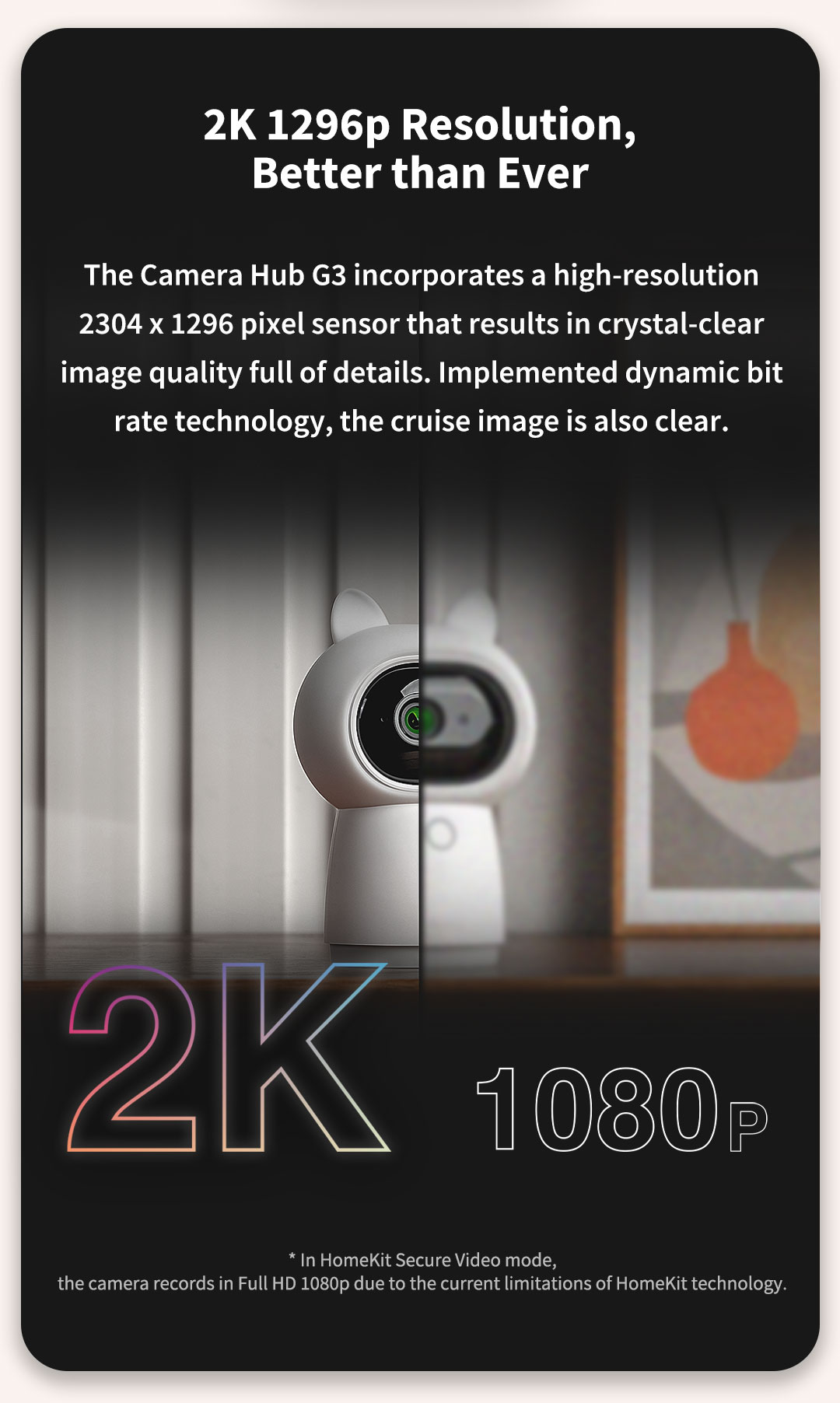

2K 2304×1296p

Viewing Angle

110°

Pan/Tilt Angle

Horizontal 340°, vertical 45° (upward 30°, downward 15°)
